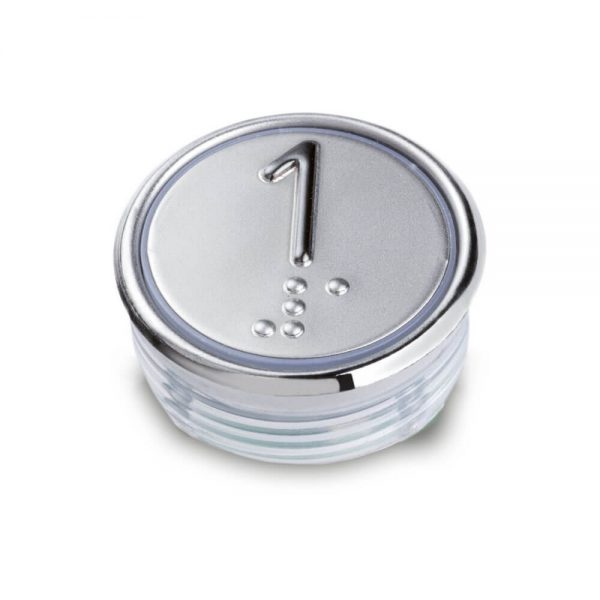

Vandal resistant push button with braille
Complies with UNI EN 81-70
BRAILLE INCLUDED IN THE PUSH BUTTONS
Body: zama and nylon push button.
Bezels: zama (chrome or gold, pearled nickel, pearled gold, anthracite)
Pressel: polycarbonate with stainless steel AISI 304 or gold/black pvd coated fi nishes; raised legend(s) and Braille

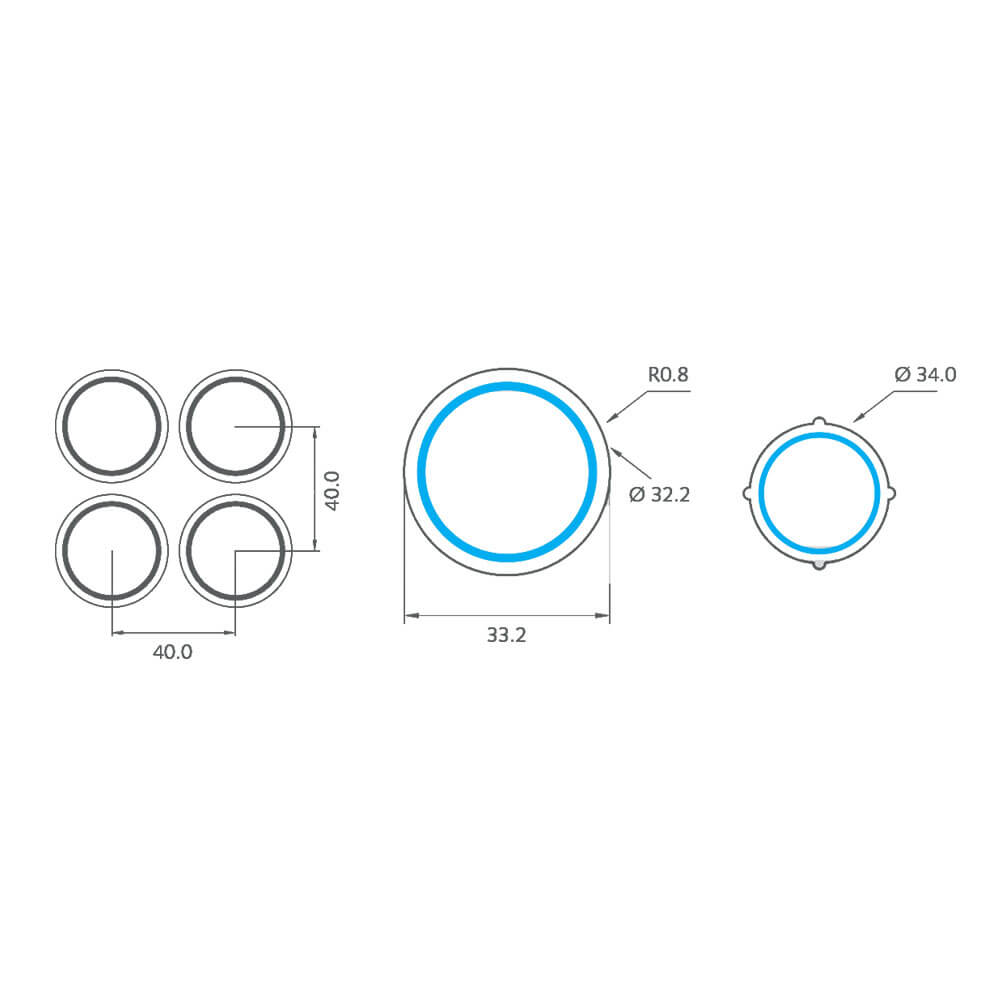

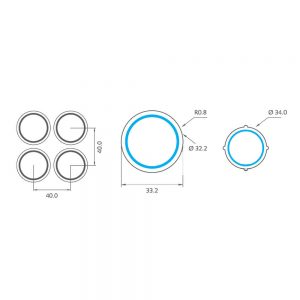

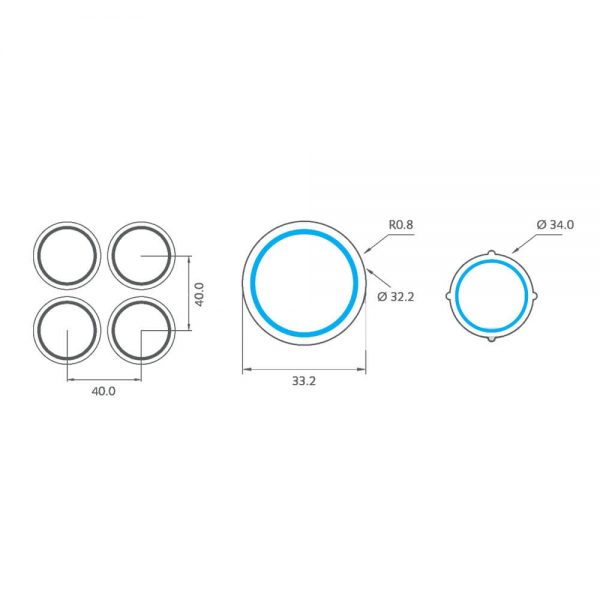

Mounting: the button is put into the cutout (Ø 32,2) from the front and fi xed by threaded ring
Faceplate Thickness: 0,7 mm to 3 mm
Contacts: 1 micro switch o 2 micro switches
Wiring: PIN or pre-wired connectors (AMP, JST or Minispox)
Illumination: Led 12V o 24V AC/DC 30mA
Stroke: 1,2 mm
Avg. life: 2.000.000 activations
Degree of protection: IP51 with metal spring IP54 with silicon spring and o-ring

ACHILLE_DD54
Deep drawn vandal resistant push button in turned stainless steel; deep drawn bezel in stainless steel AISI 304, gold or black pvd coated finishes.

ACHILLE_DD54_PLUS
ACHILLE DD54, Class 2, turned steel bezel and silicone spring (IP54)

ACHILLE_DD54_WB
ACHILLE DD54 with legend no burnished.

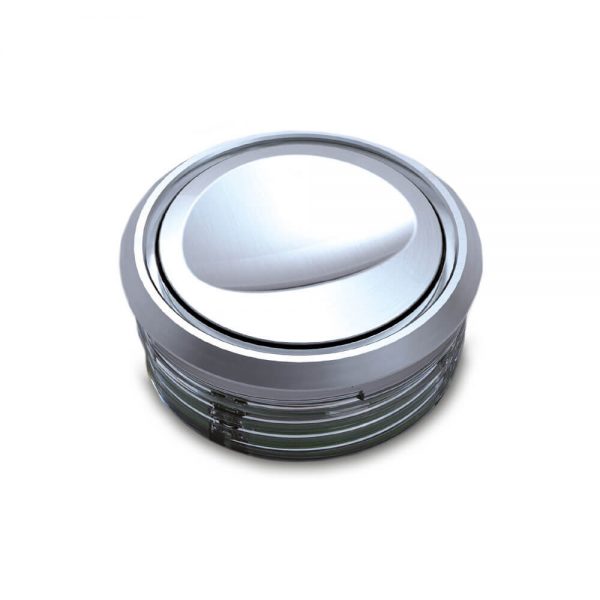

ACHILLE_AZ
Vandal resistant push button with nail shaped; pressel in zama (chrome or gold, pearled nickel, pearled gold, anthracite).
