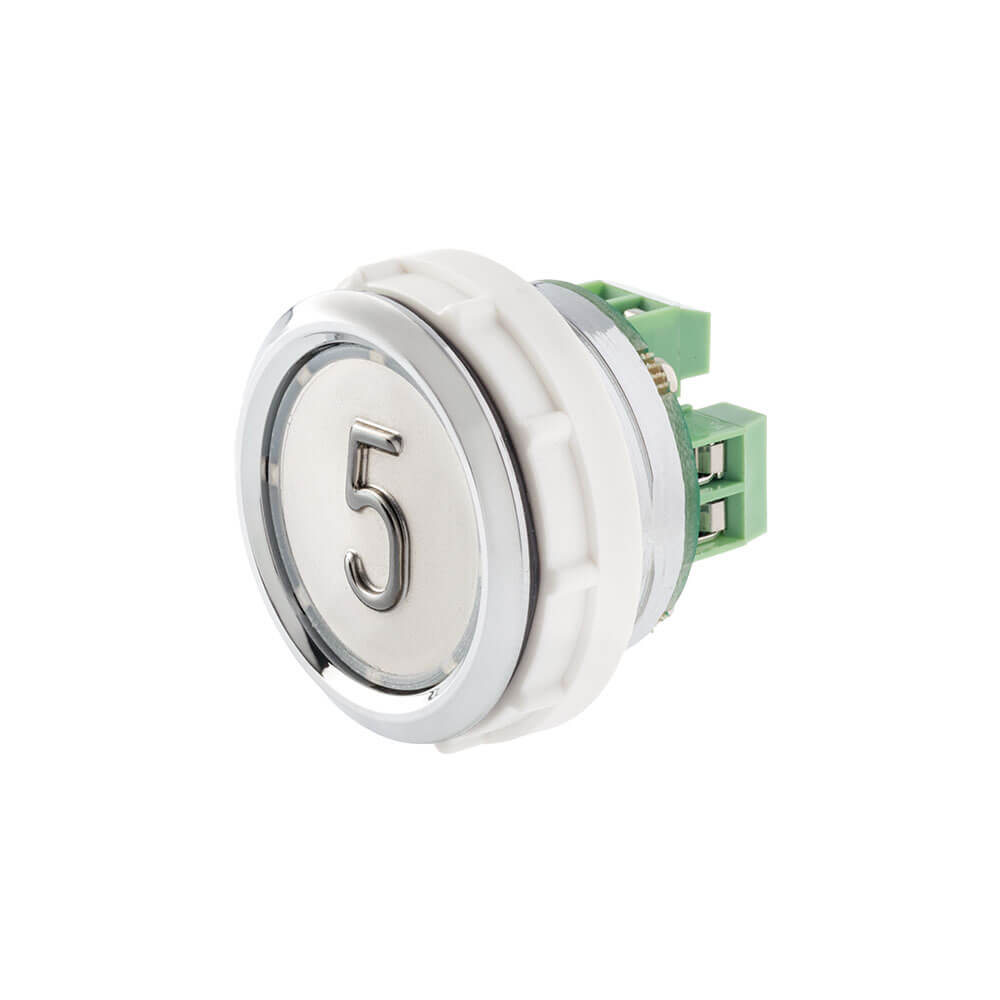

Vandal resistant push button CLASS 2
Complies with UNI EN 81-70
Complies with UNI EN 81-71
Body: vandal proof zamak push button in compliance with the UNI EN 81-70 standard for class 2.
Bezels and pressel colour: chrome or gold.
Pressel: damage free plastic with stainless steel AISI 304 or gold/black pvd coated finishes; raised legend(s).

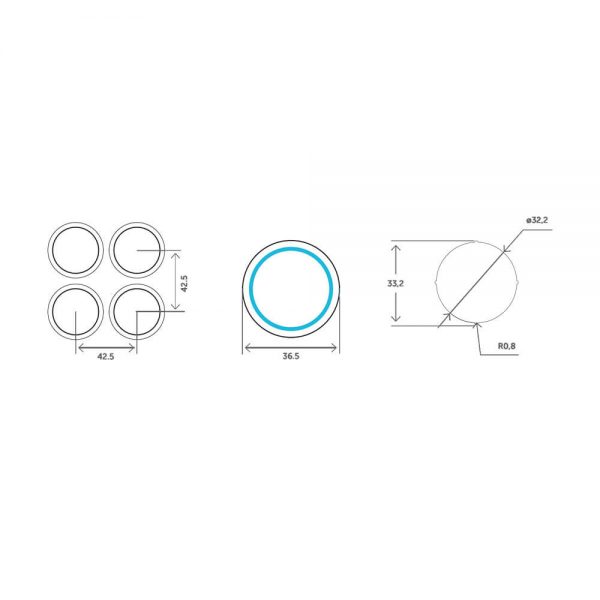

Mounting: the button is put into the cutout (Ø 32,2) from the front and fixed by threaded ring.
Faceplate Thickness: 0,7 mm to 5 mm suitable for mounting on faceplates.
Contacts: 1 micro switch o 2 micro switches.
Wiring: PIN or pre-wired connectors (AMP, JST or minispox).
Illumination: Led 12V o 24V DC 30mA.
Stroke: 1,2 mm.
Avg. life: 2.000.000 activations.
Degree of protection: IP54.
