Push button with braille
Complies with UNI EN 81-70
BRAILLE INCLUDED IN THE PUSH BUTTONS

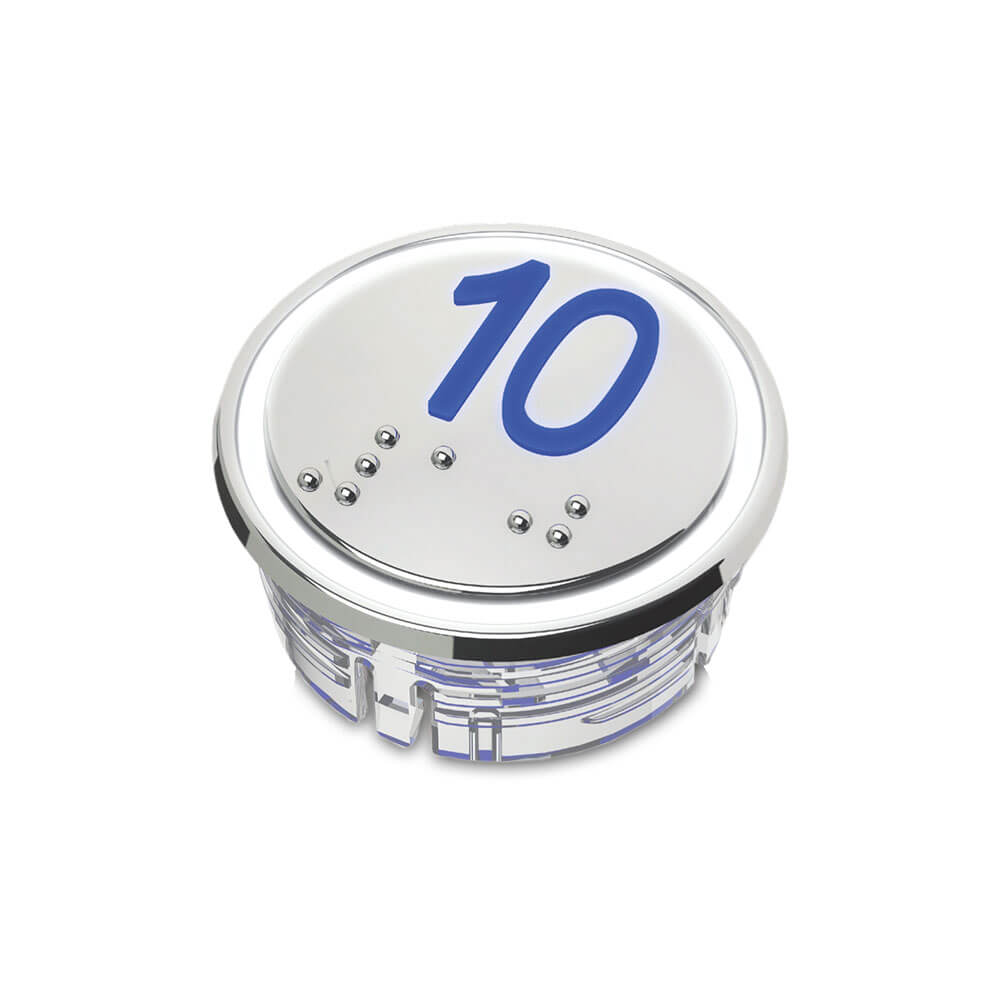

Body: polycarbonate pushbutton with raised symbol (EN 81-70 standards) and Braille
Bezels: metallized ABS in gold or chrome

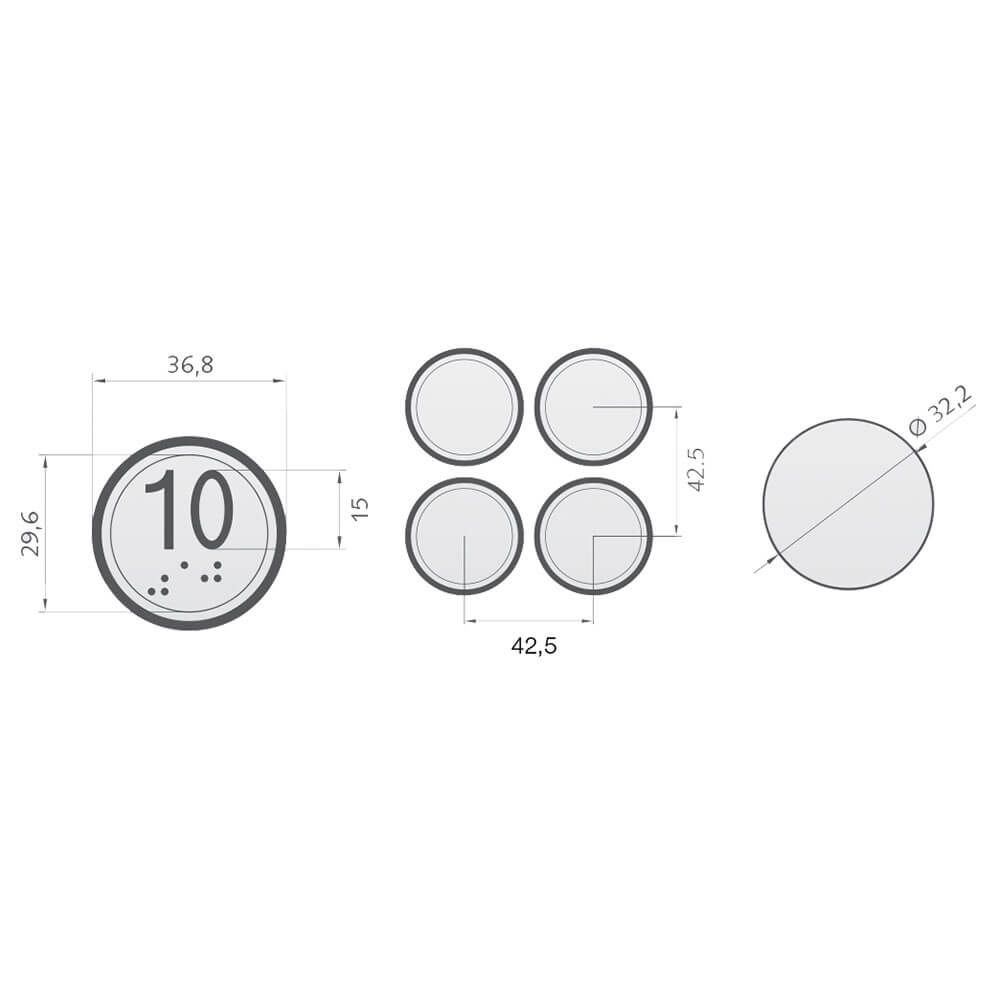

Mounting: the button is put into the cutout (Ø 32,2) from the front and fi xed by threaded ring
Faceplate Thickness: 0,7 mm to 5 mm
Pressel: polycarbonate with stainless steel AISI 304 or gold/black pvd coated fi nishes; tactile (raised) and lluminated legend(s)
Contacts: 1 micro switch o 2 micro switches
Wiring: PIN or pre-wired connectors (AMP or JST)
Illumination: Led 12V o 24V AC/DC 20mA
Stroke: 1,2 mm
Avg. life: 2.000.000 activations
Degree of protection: IP51

Lightings

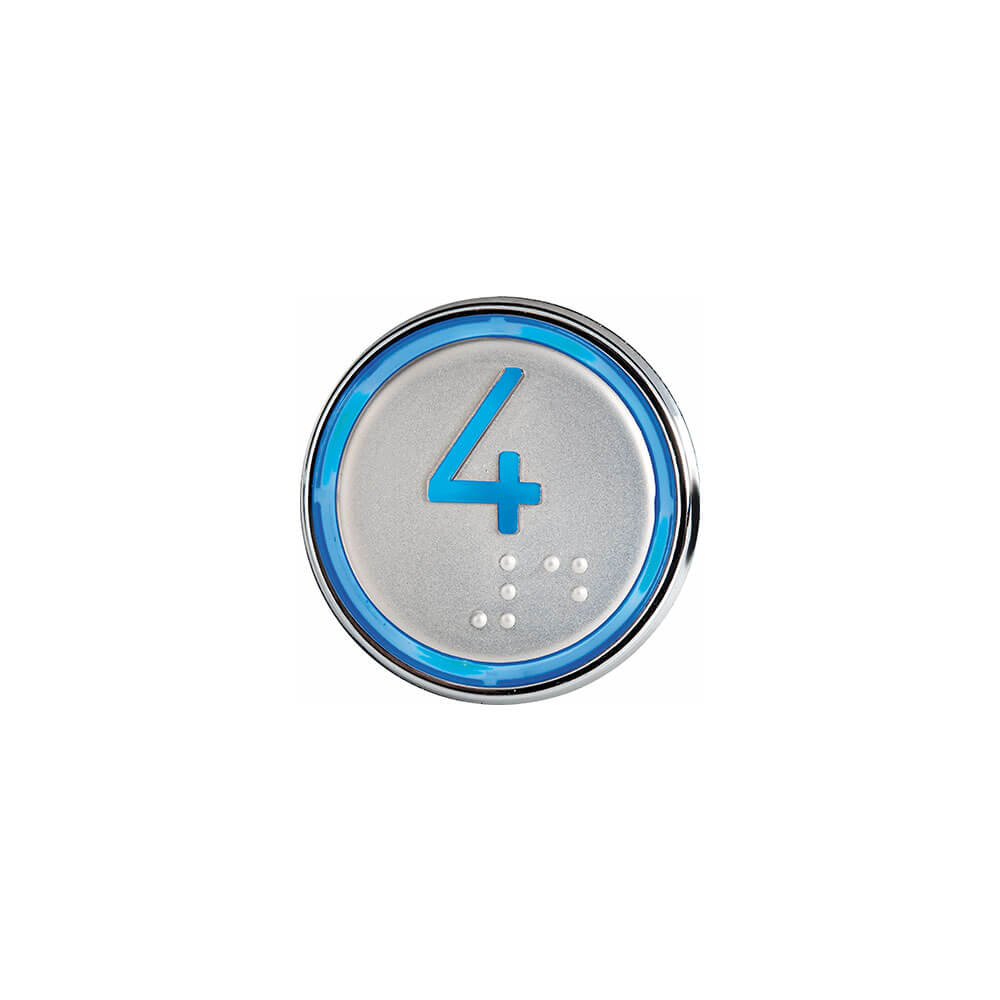

Blue

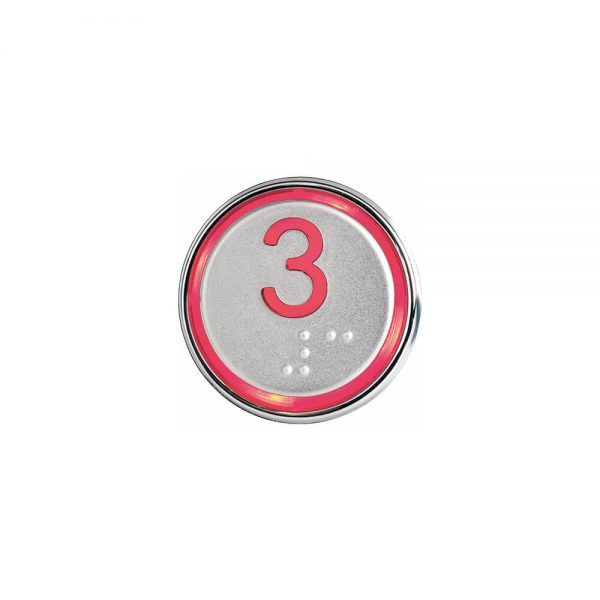

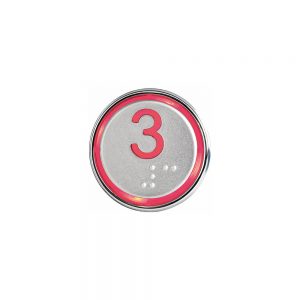

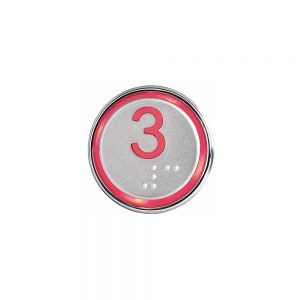

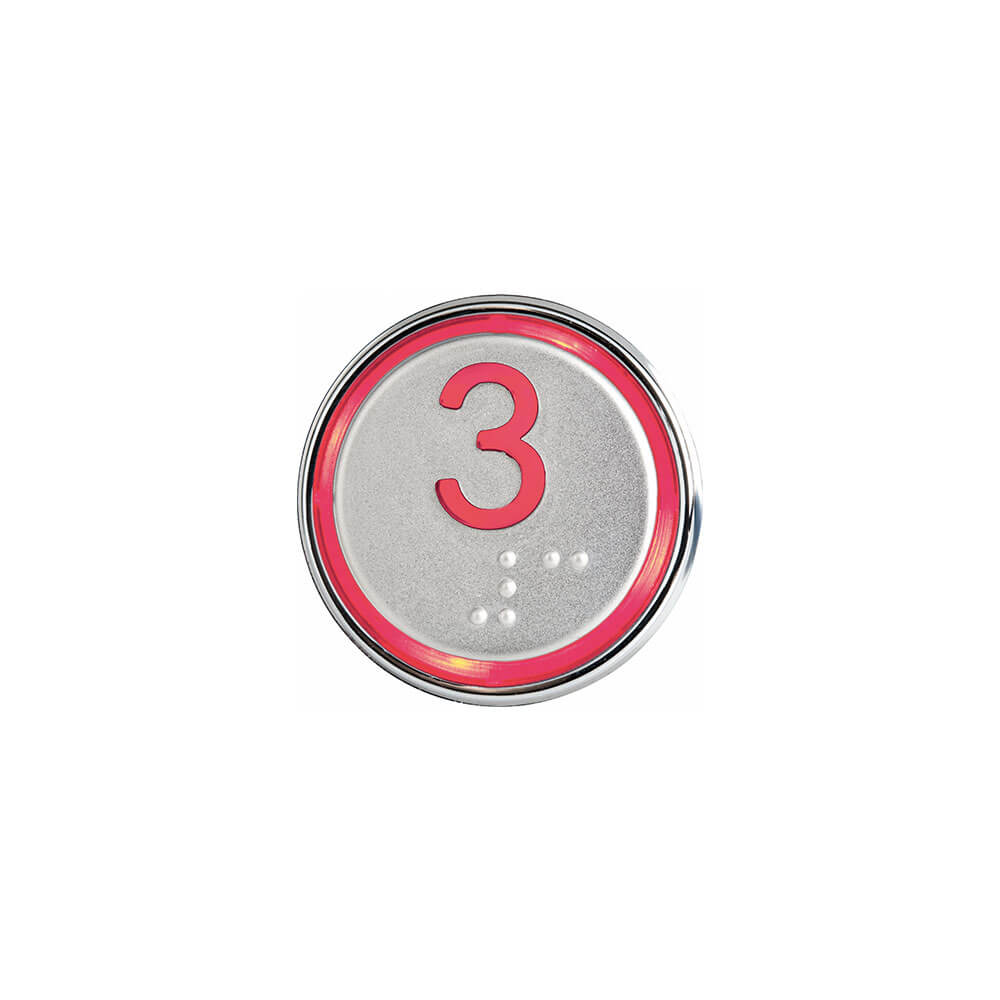

Red

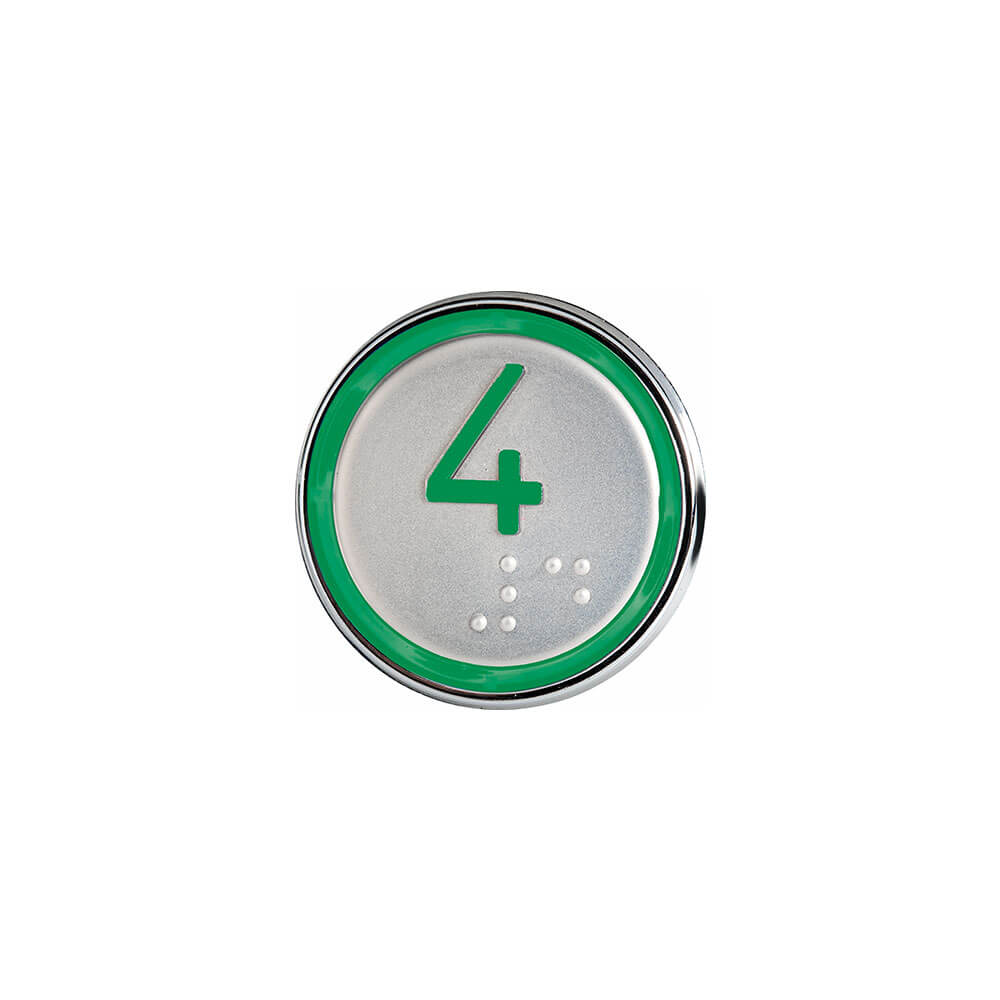

Green

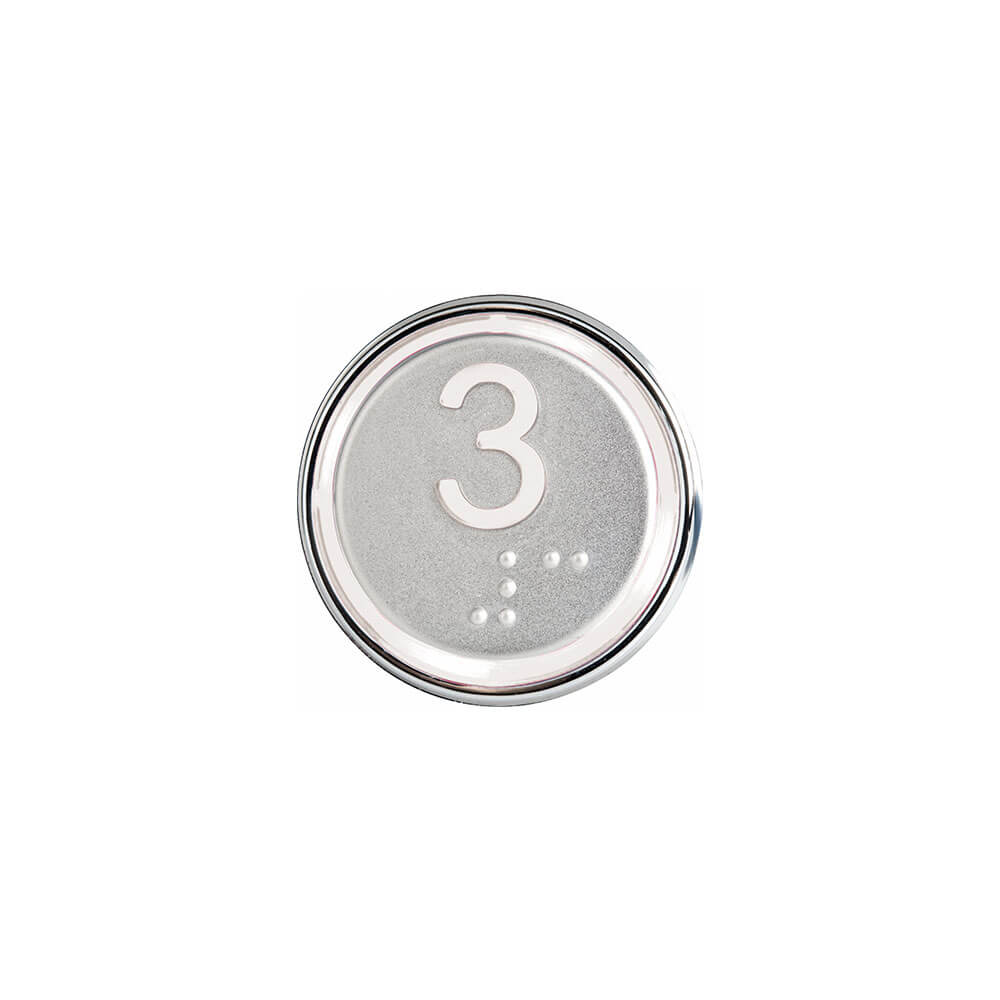

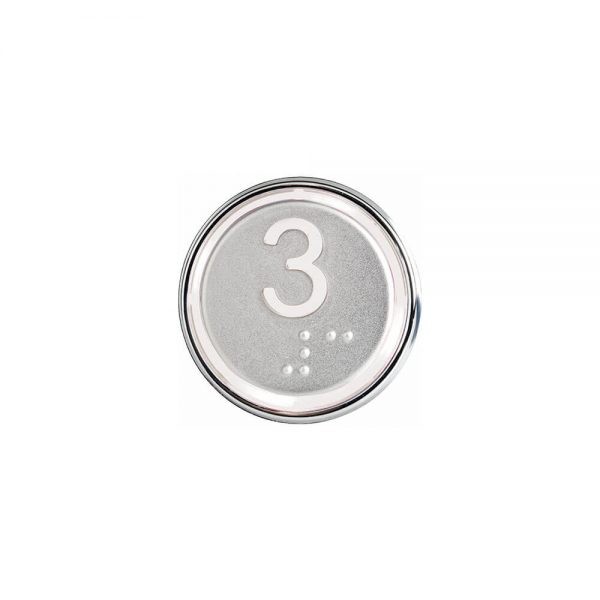

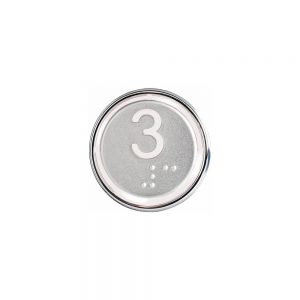

White

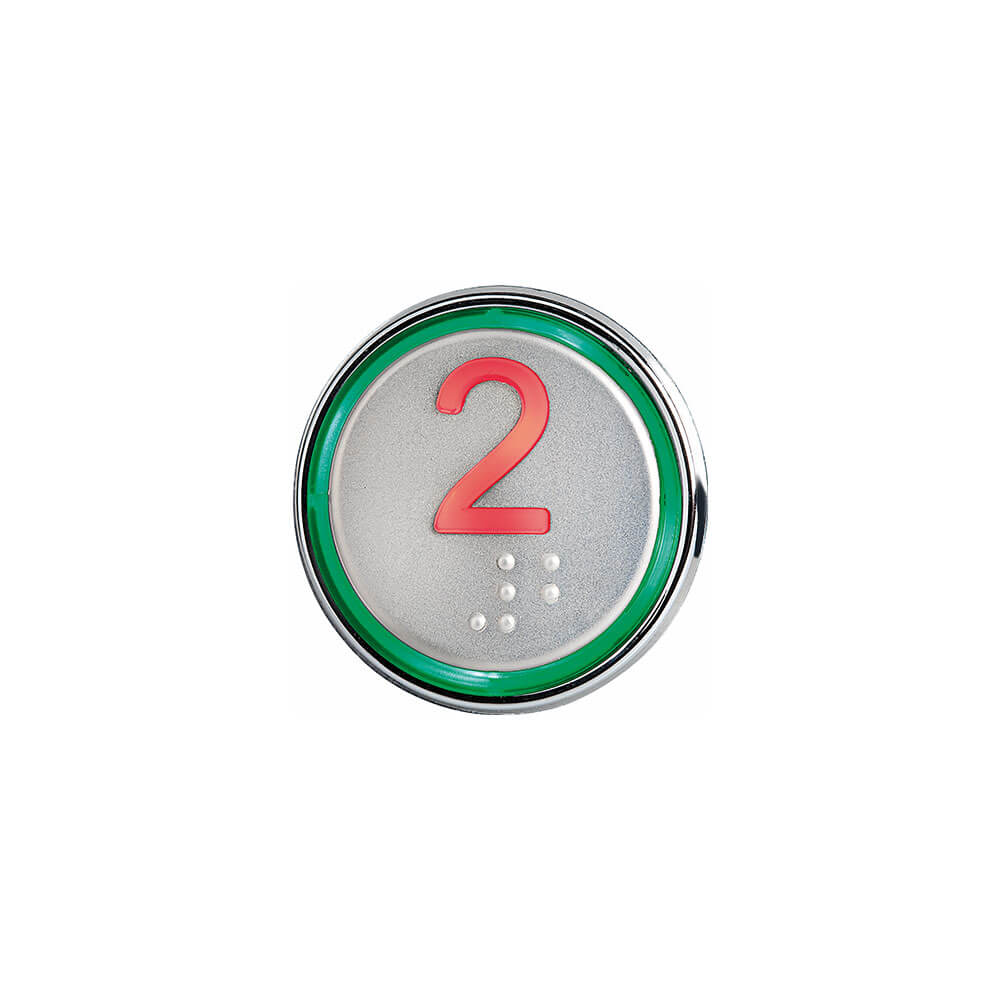

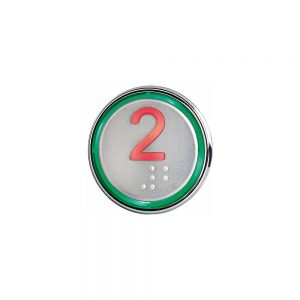

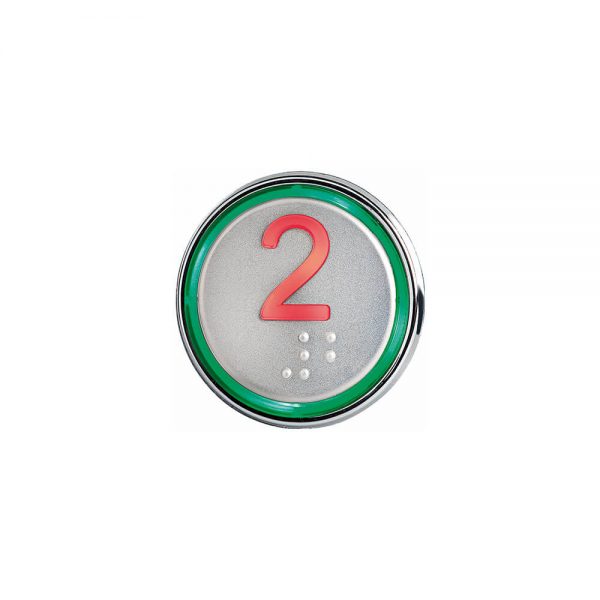

Red Green

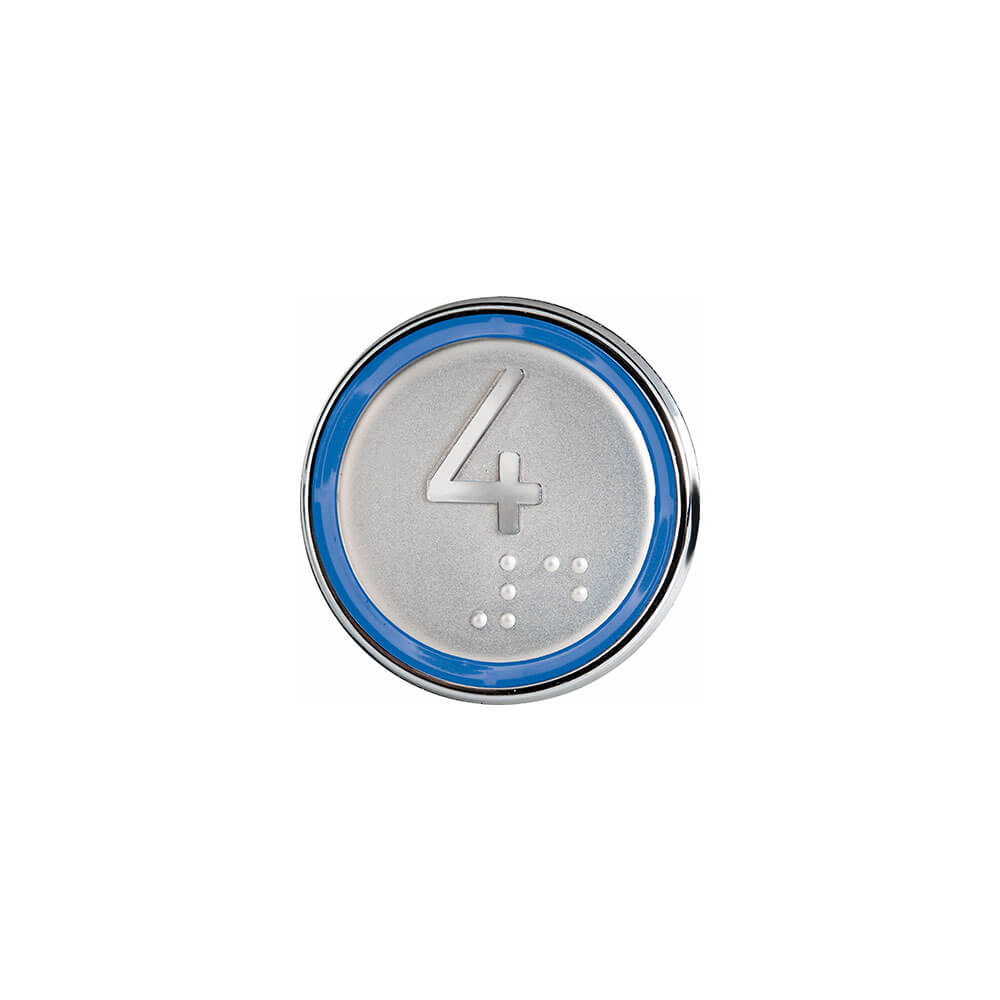

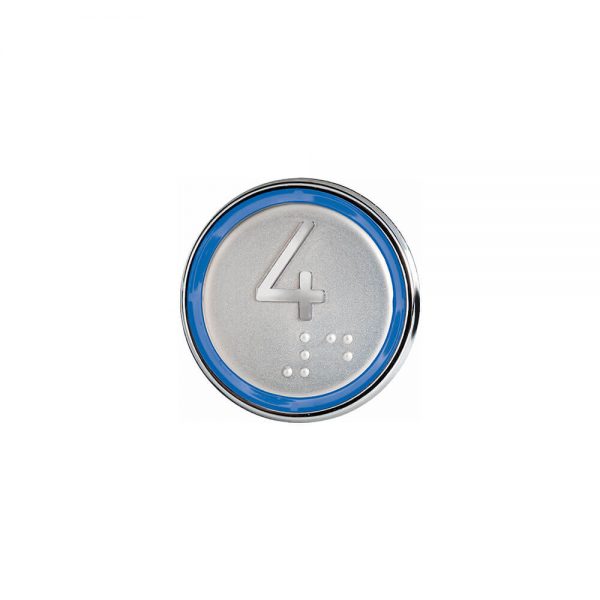

Blue White

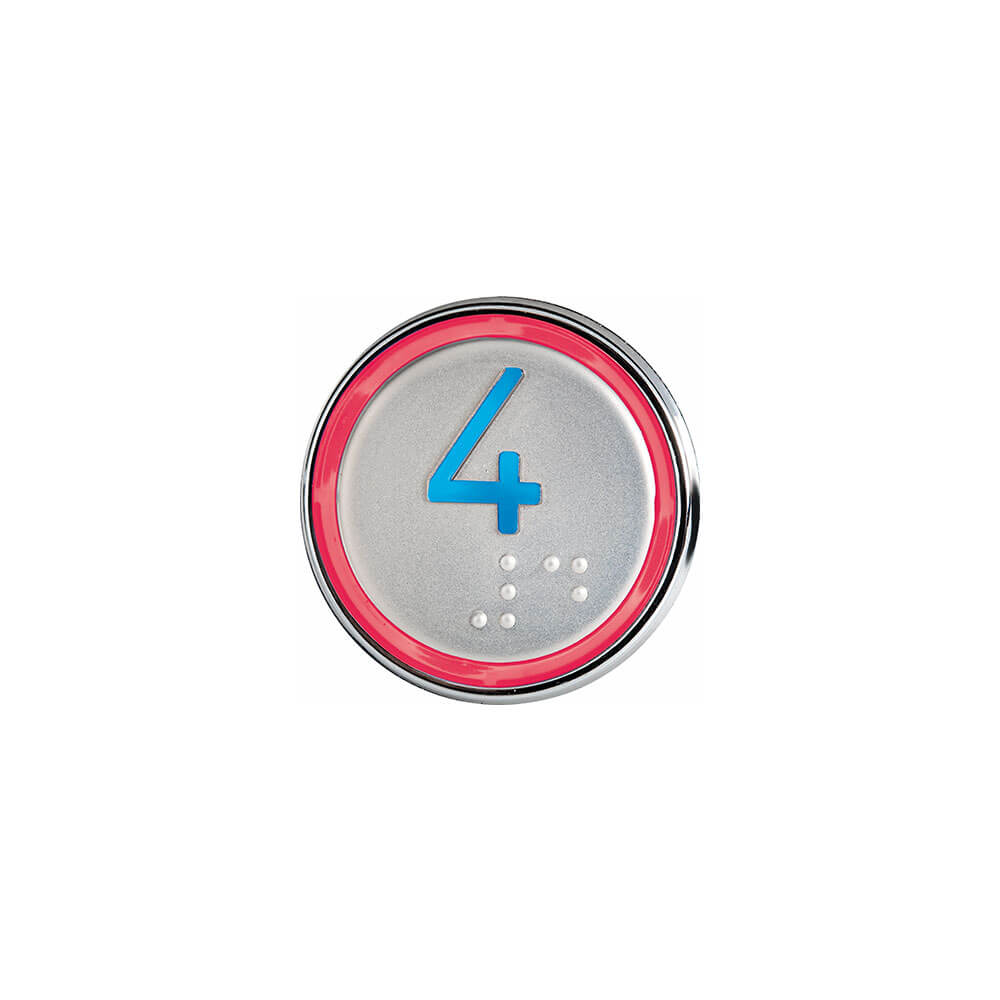

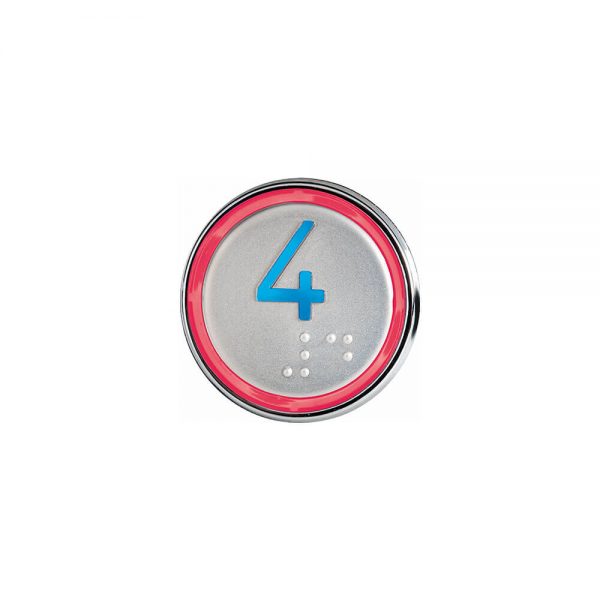

Red Blue

Bezels

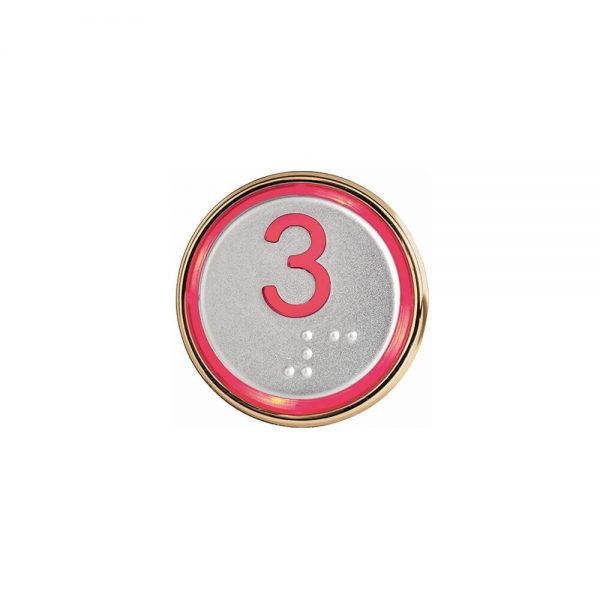

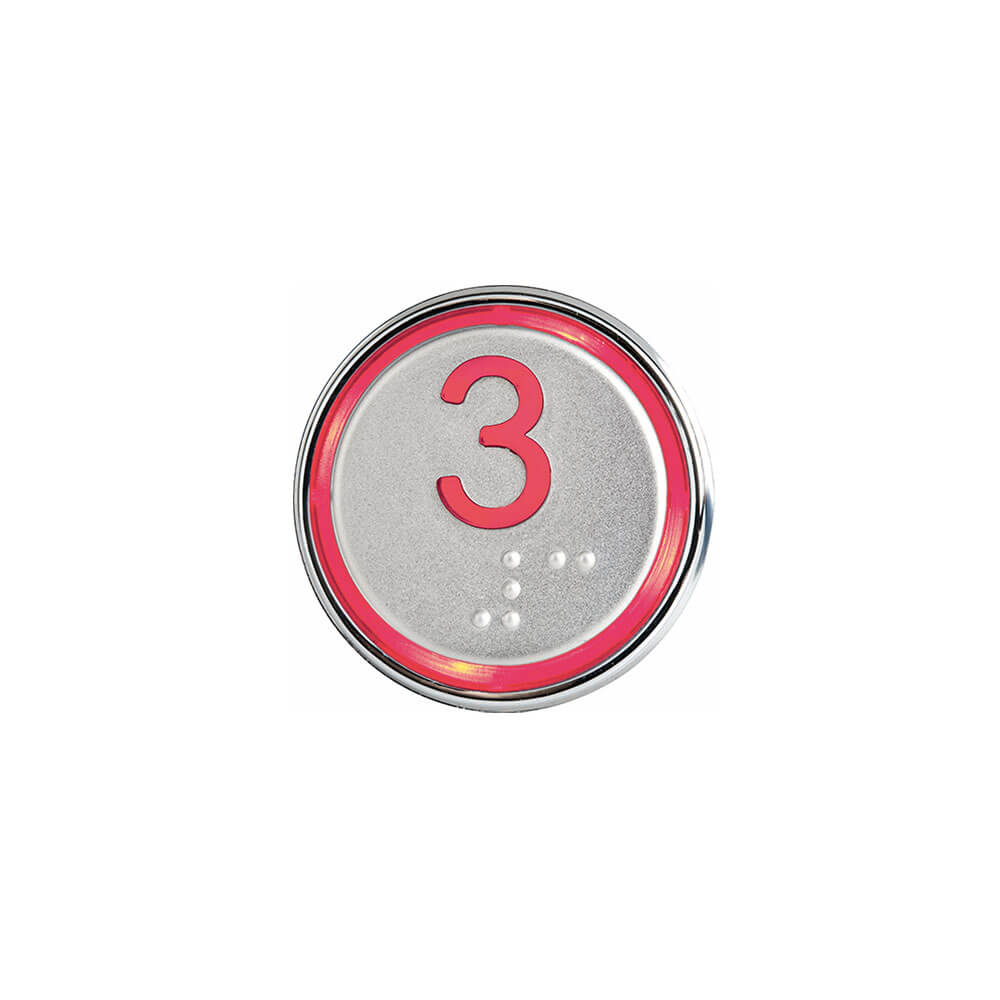

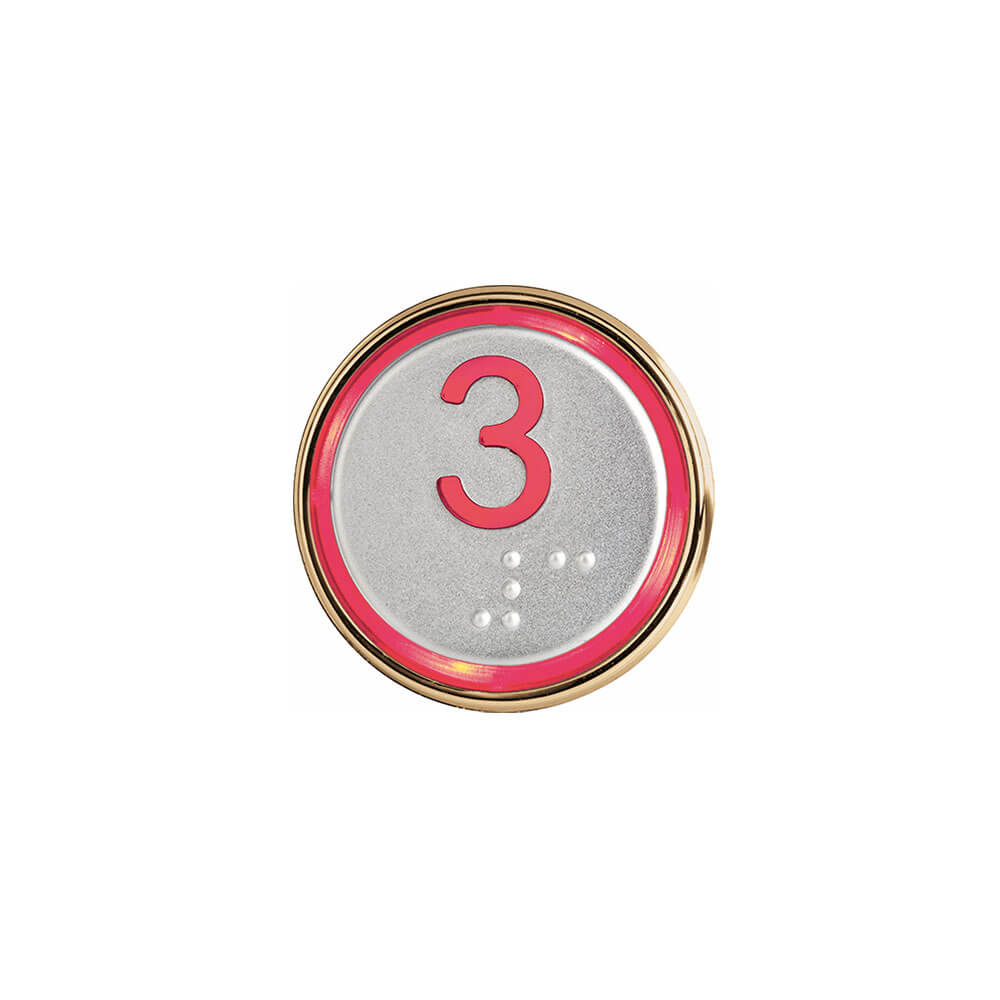

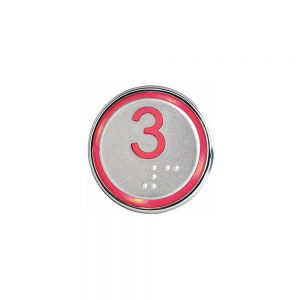

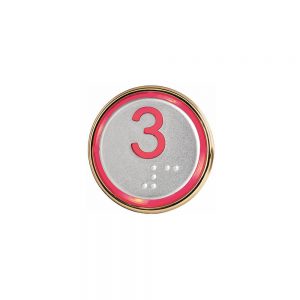

Round Metallized ABS in gold

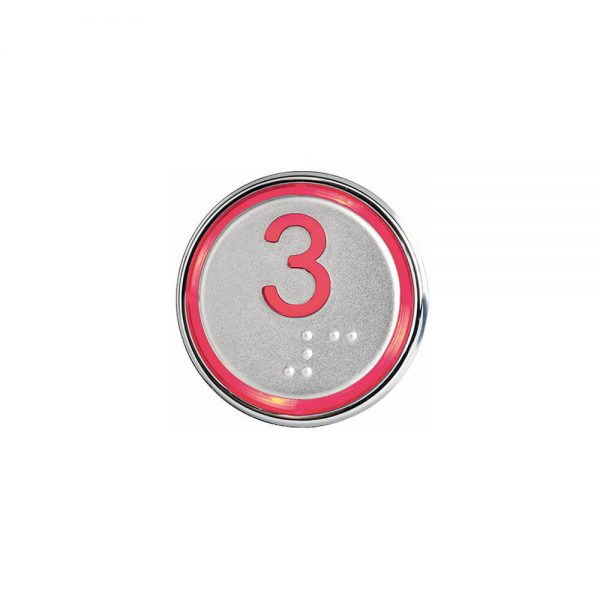

Bead blasted stainless steel

Oval Gold plastic

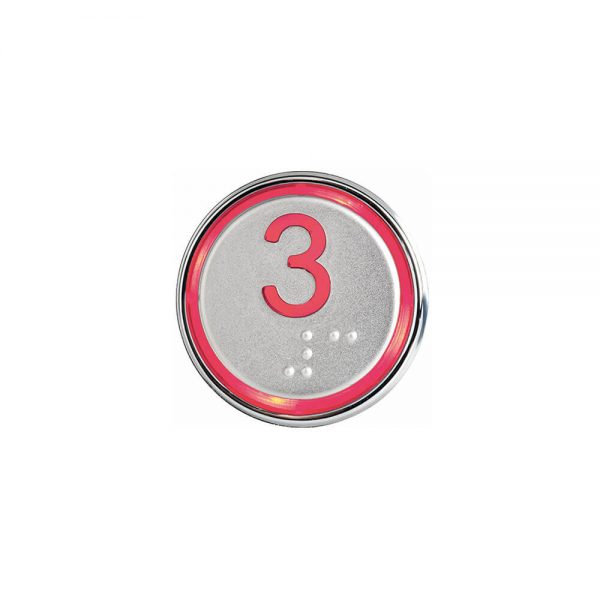

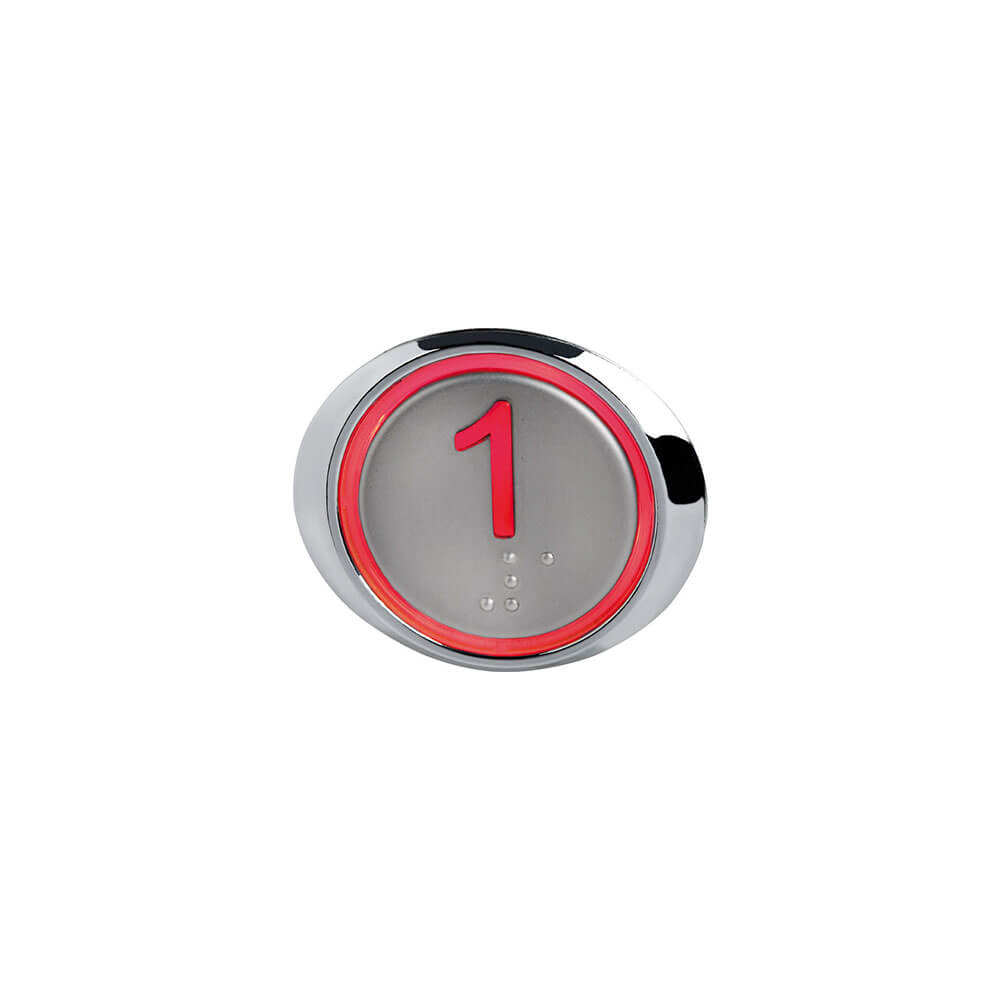

Oval Chromium plastic

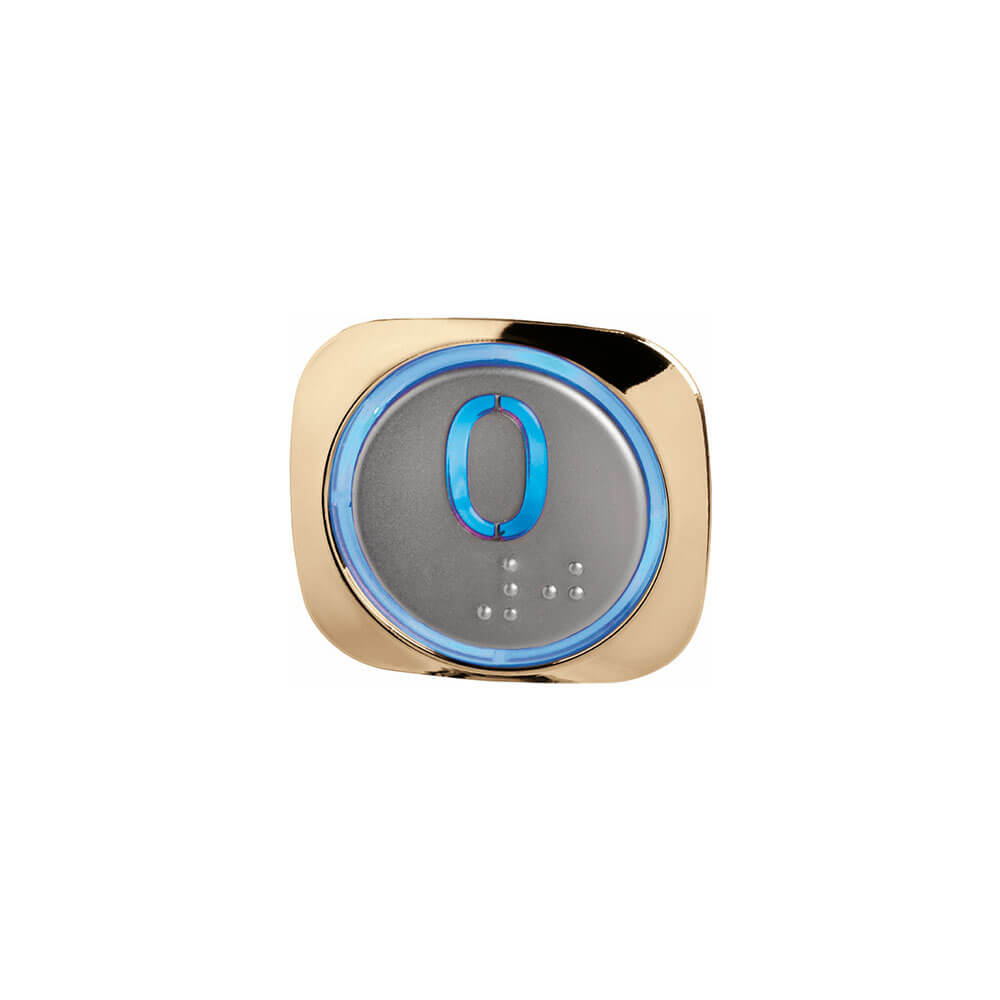

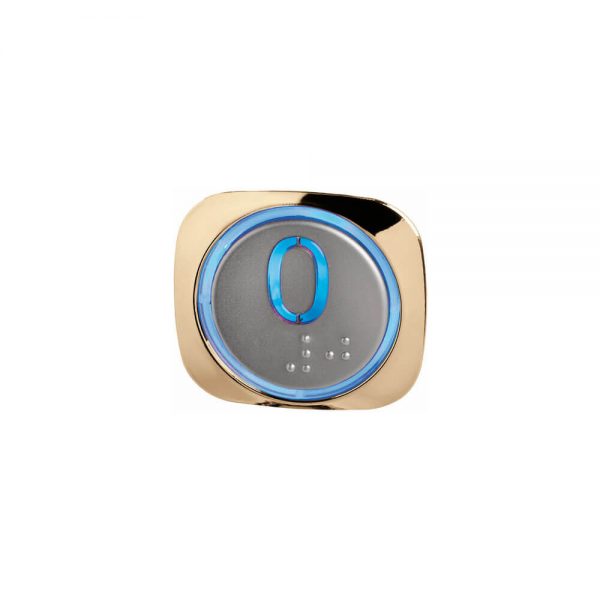

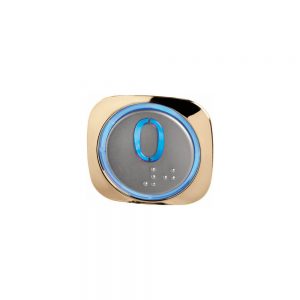

Squared Gold plastic

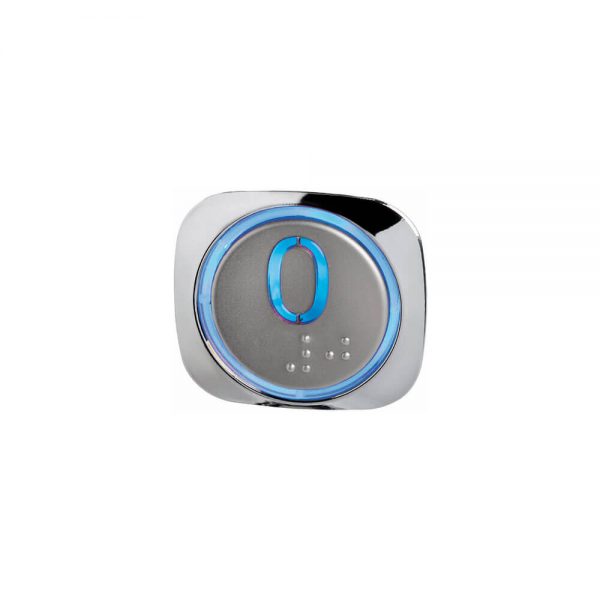

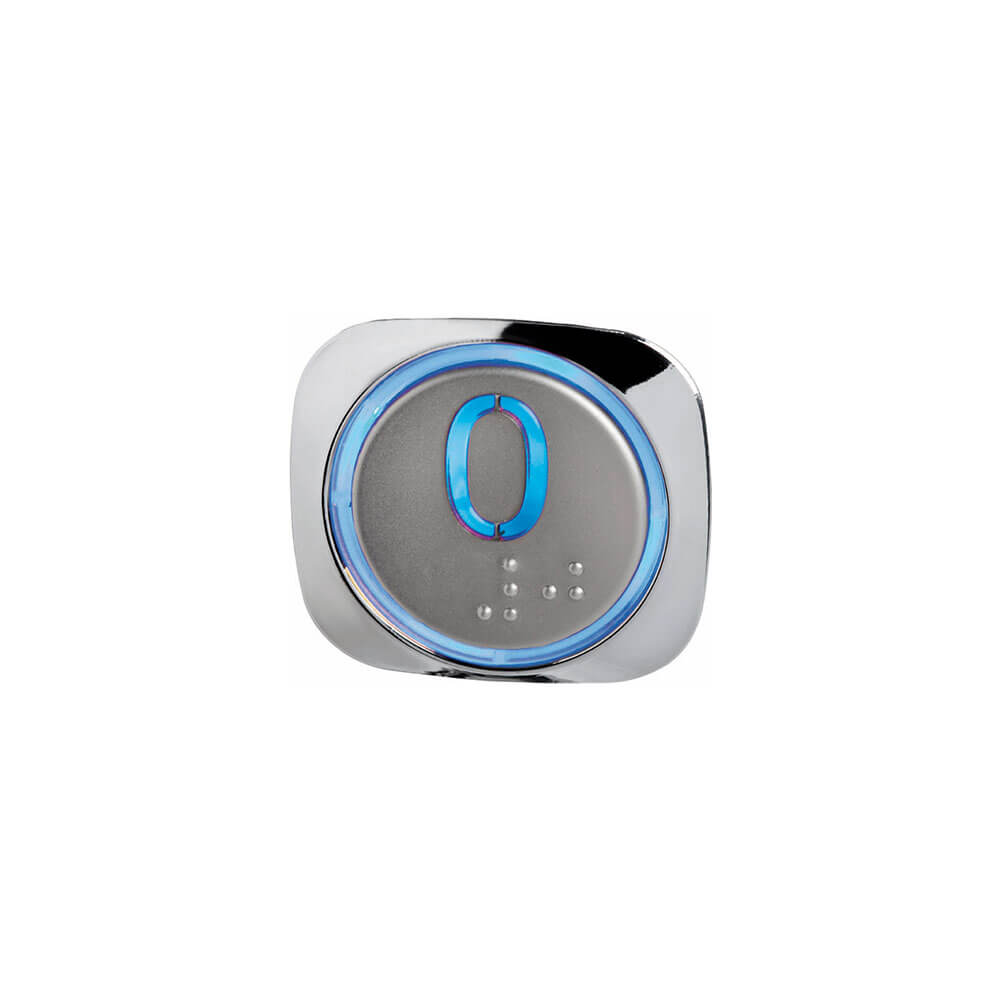

Squared Chromium plastic

Finishes

Pvd Bead blasted stainless steel

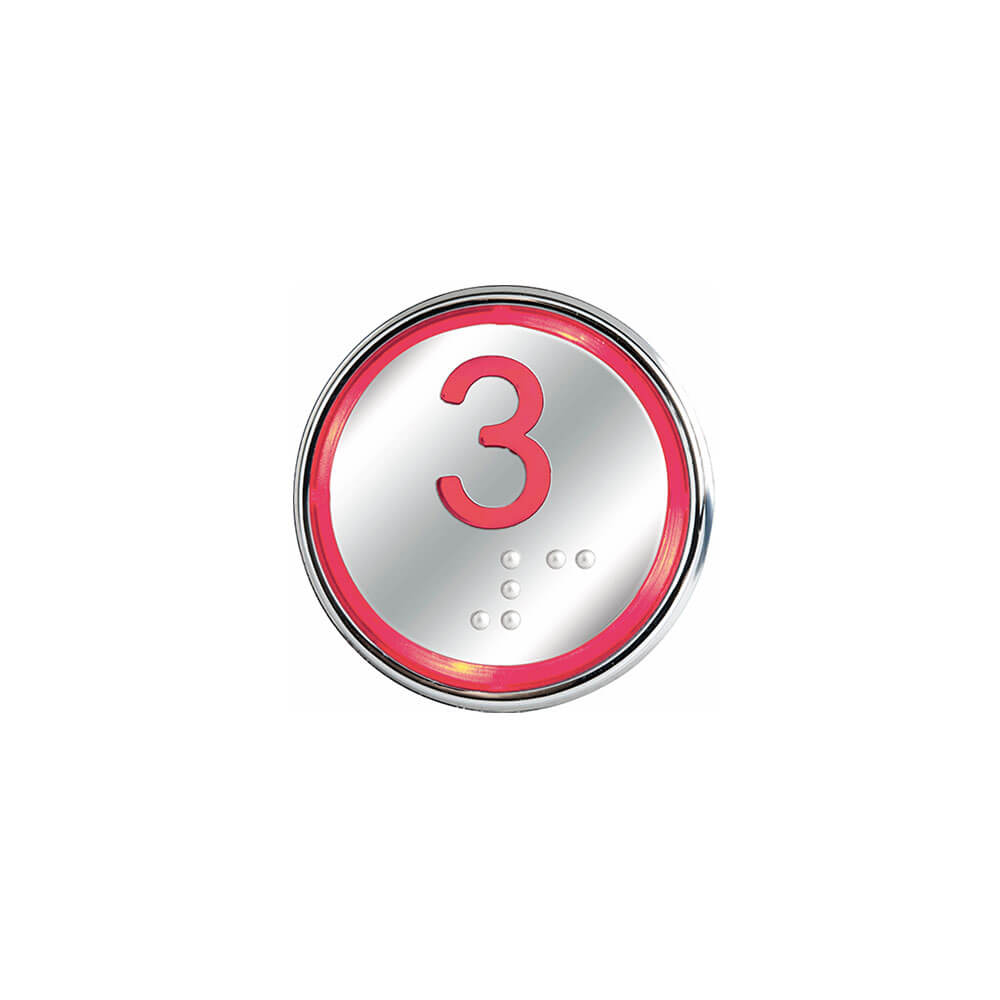

Pvd Mirror stainless steel

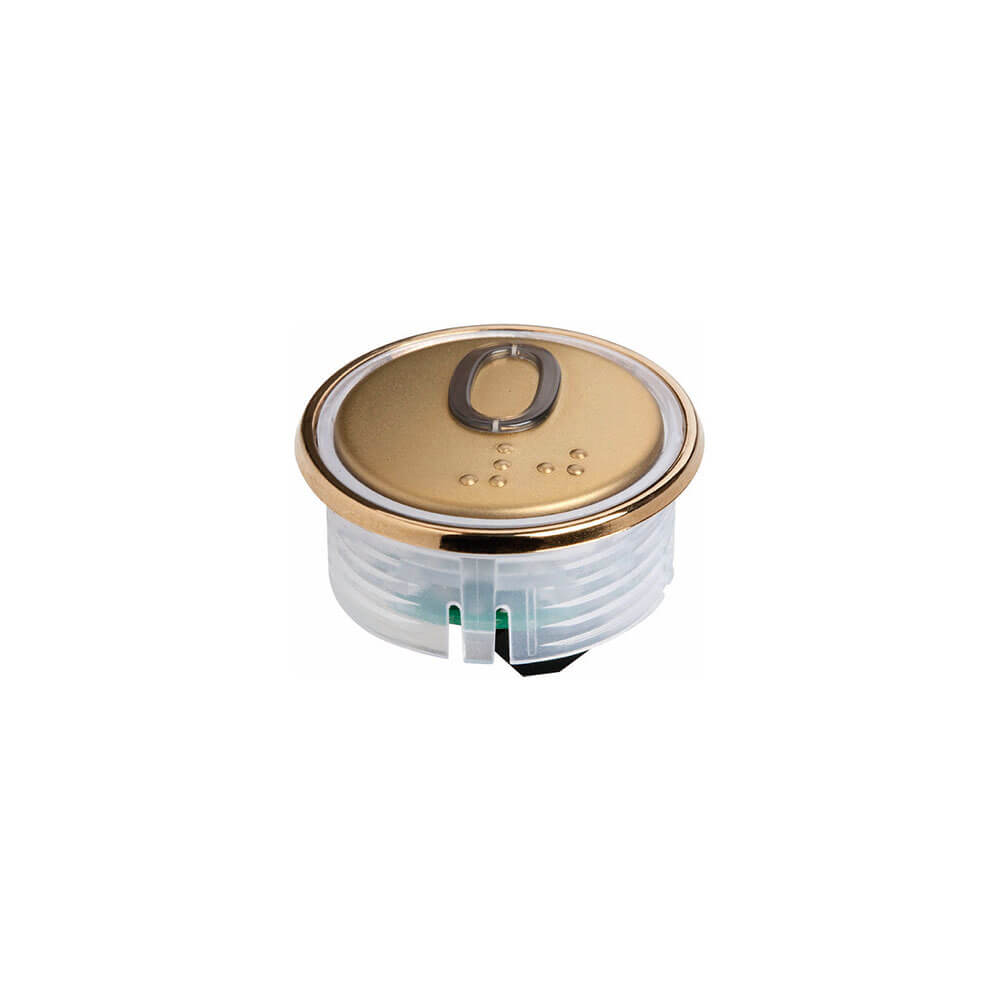

Gold (pvd) bead blasted

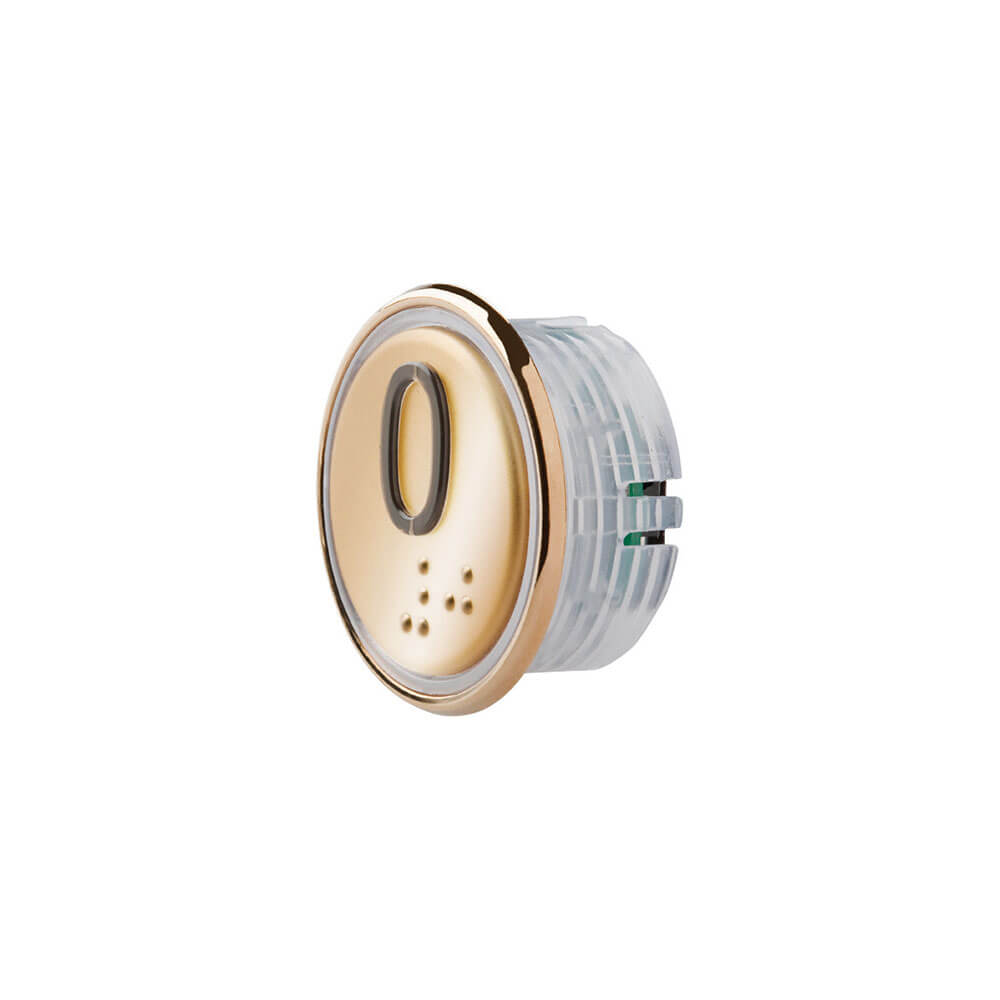

Mirror gold (pvd)

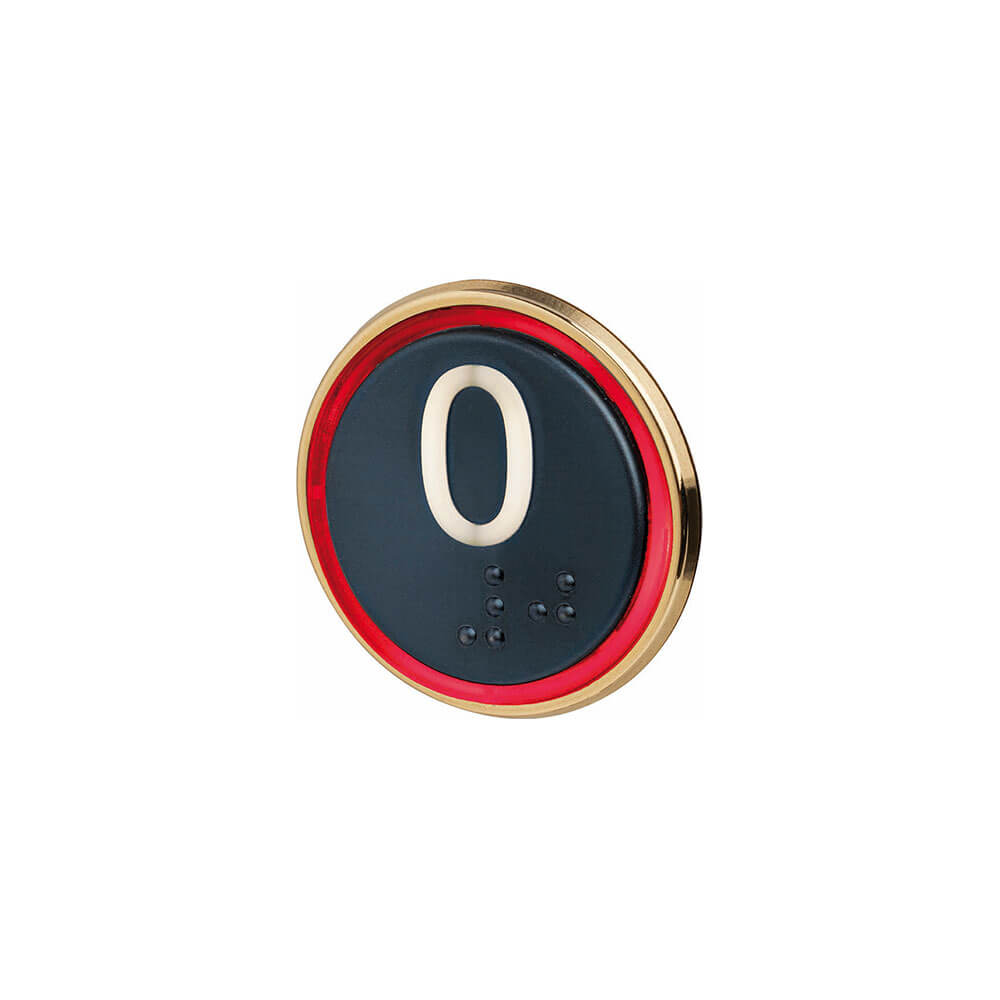

Black Bead blasted (pvd)

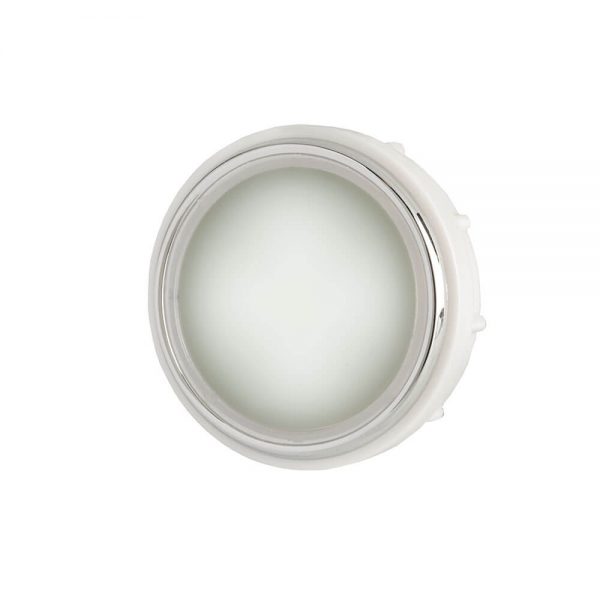

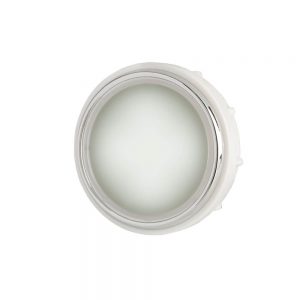

VENUS LEM
Round emergency light
Body: polycarbonate pushbutton with white emergency light integrated.
Bezel: metallized ABS (gold and chrome) or stainless steel.
Mounting: the emergency light is put into the Ø 32,2 cutout from the front and fi xed by threaded ring.
Faceplate thickness: 0,7mm to 5mm.
Wiring: pre-wiring (12V or 24V) or Pin connectors (12V and 24V).
Degree of protection: IP51 or IP54.
