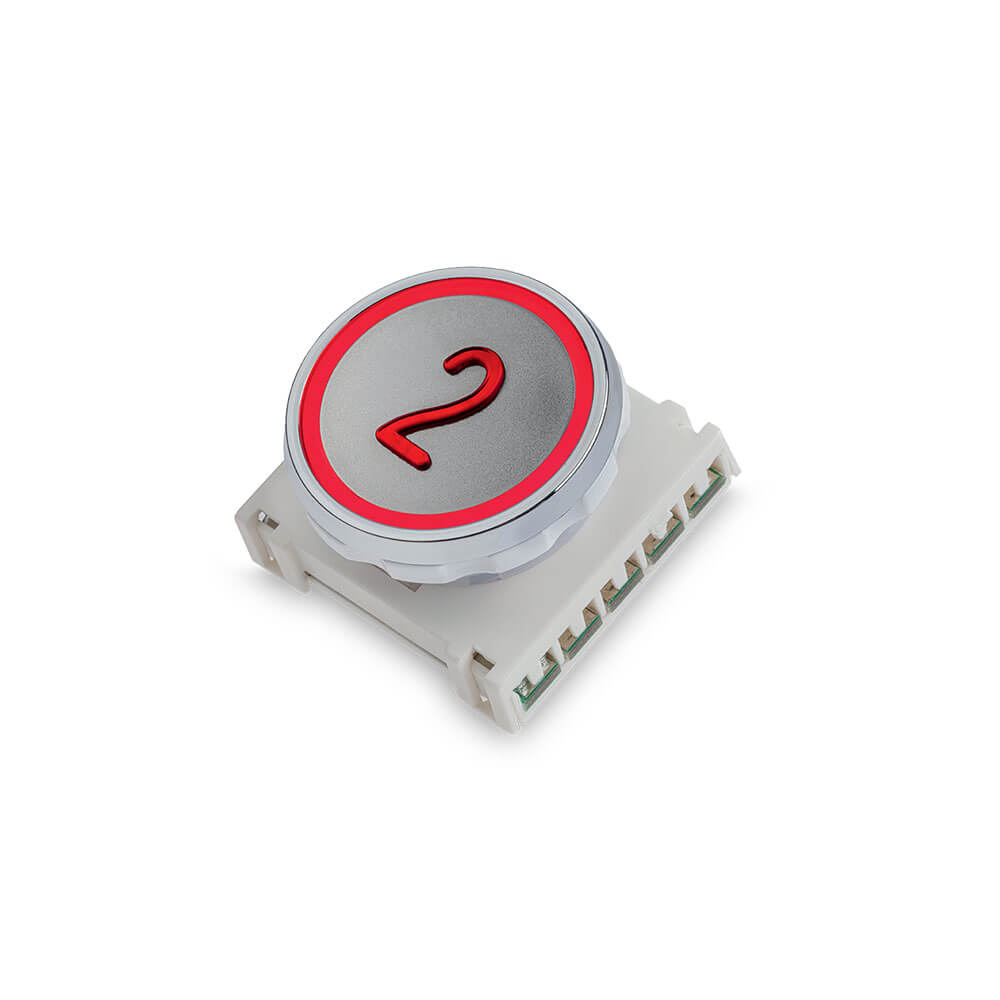

Push button with case
Complies with UNI EN 81-70
Body: polycarbonate pushbutton with raised symbol (EN 81-70 norm)
Bezels: metallized ABS in gold or chrome
Pressel: polycarbonate with stainless steel AISI 304 or gold pvd coated fi nishes; tactile (raised) and lluminated legend(s)

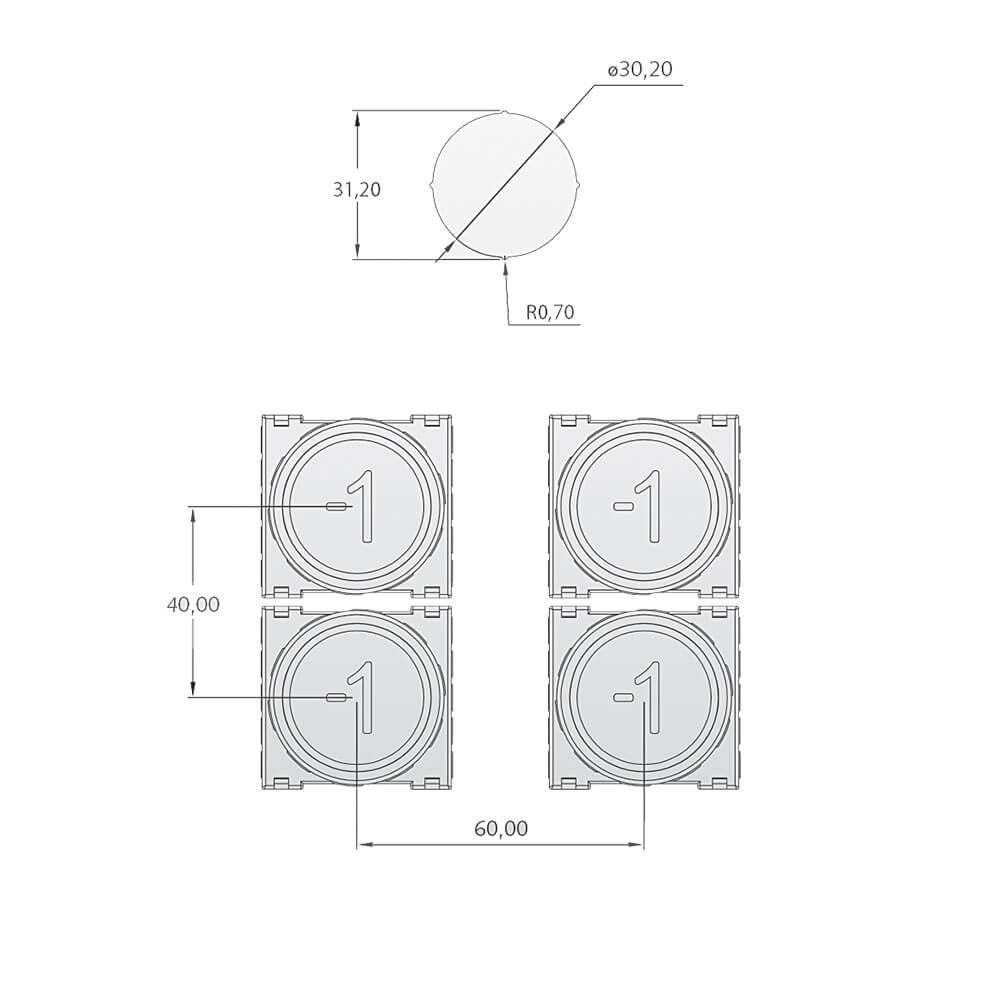

Mounting: quick fastening on 0.7mm to 3mm faceplates.
1° step: body’s push buttons by jam-nut and
2° step: automatic mounting of circuit’s case
Contacts: 1 micro switch o 2 micro switches
Wiring: PIN or pre-wired connectors (AMP or JST)
Illumination: Led 12V o 24V AC/DC 20mA
Stroke: 1,2 mm
Avg. life: 1.500.000 activations
Degree of protection: IP51

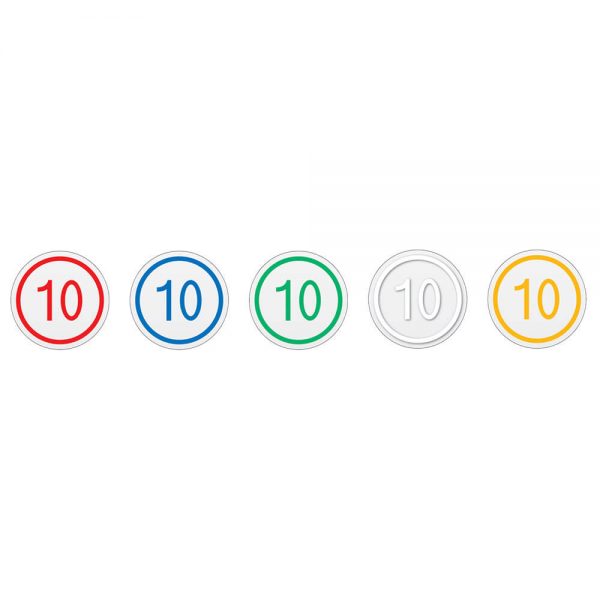

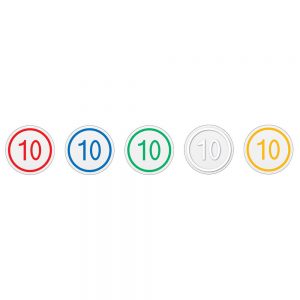

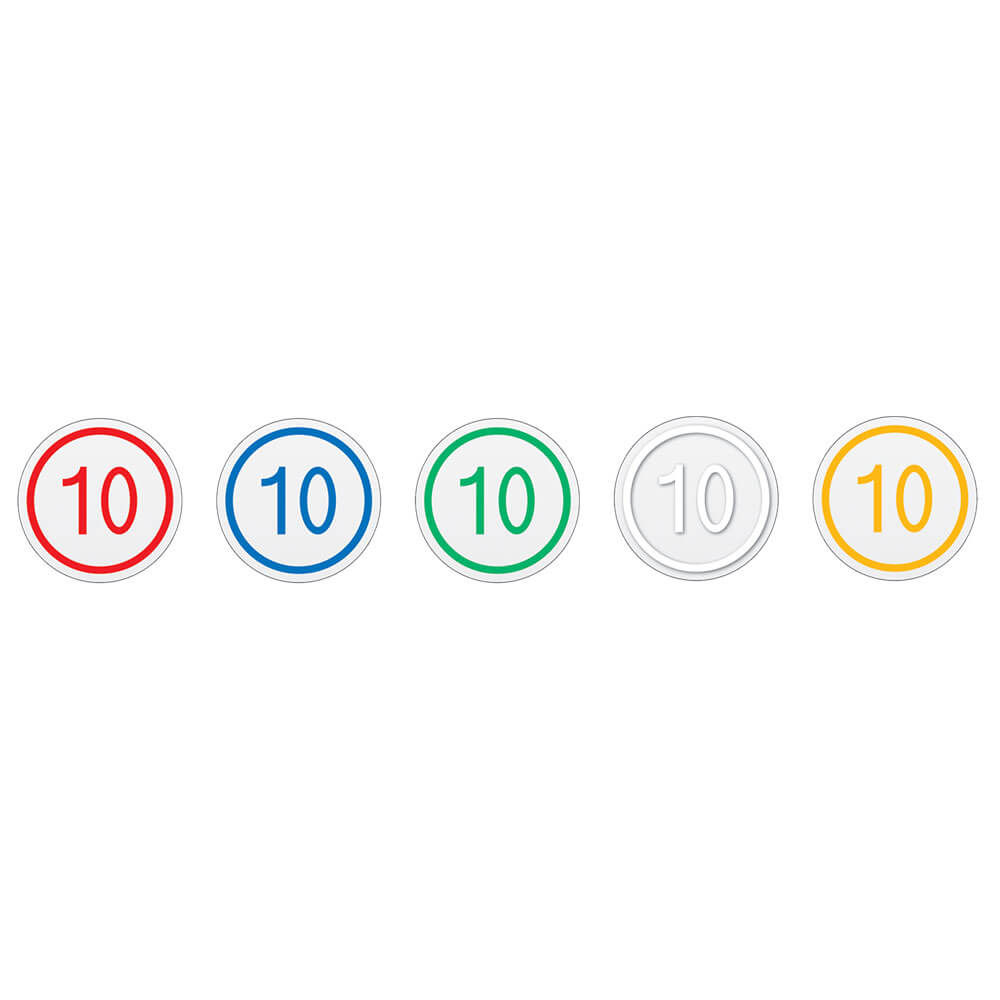

Available light signals

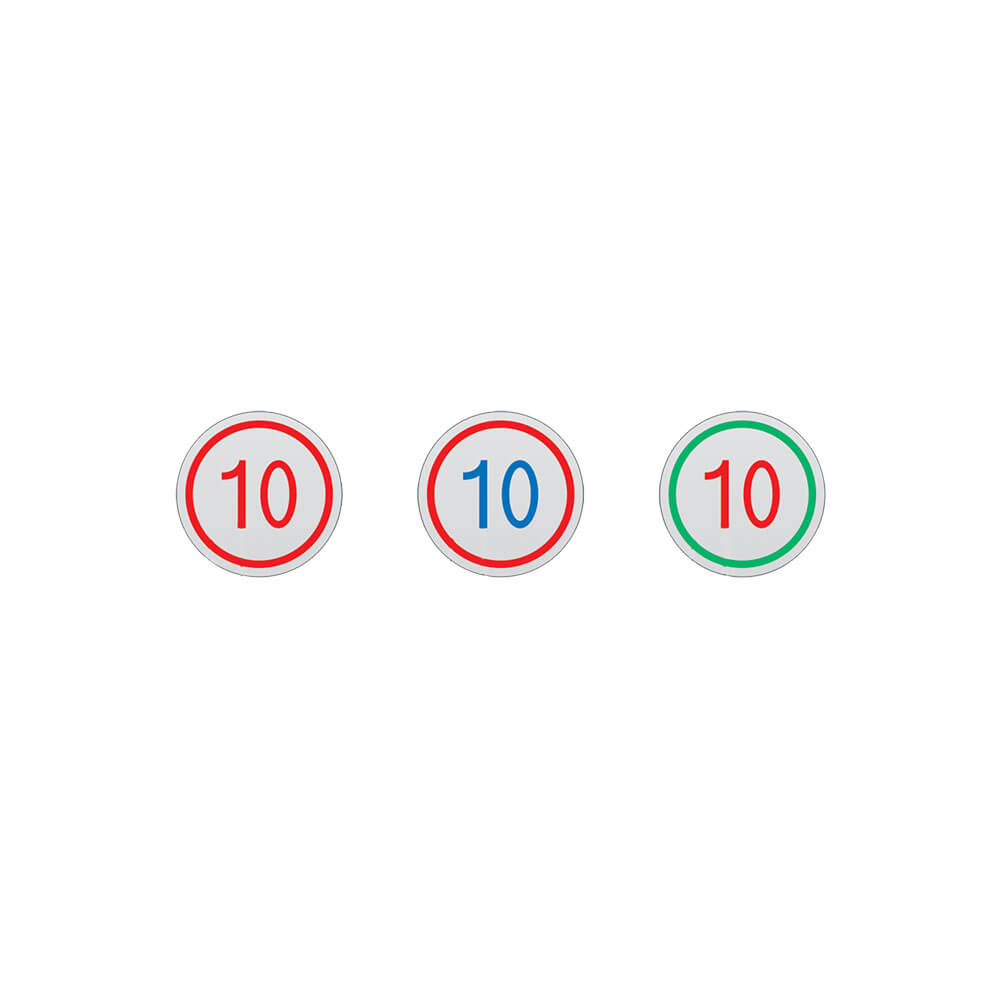

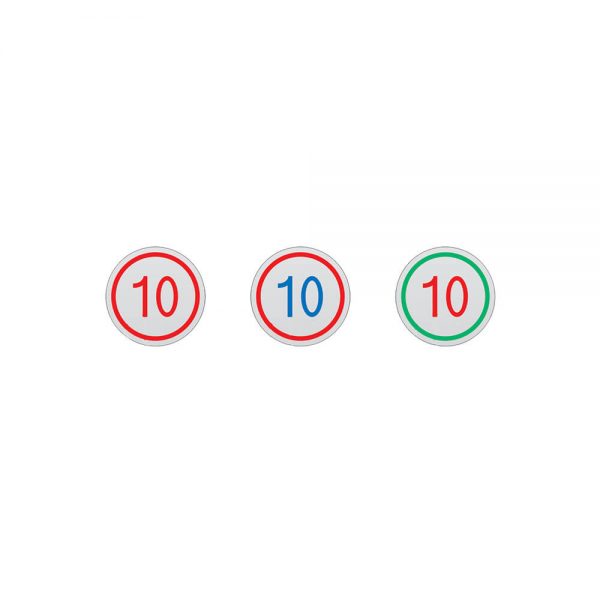

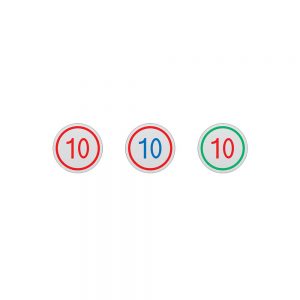

“DUAL-LIGHT” Available light signals
