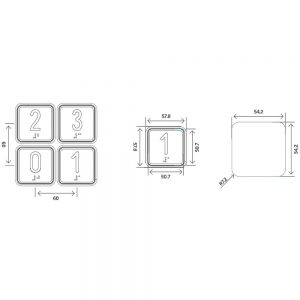

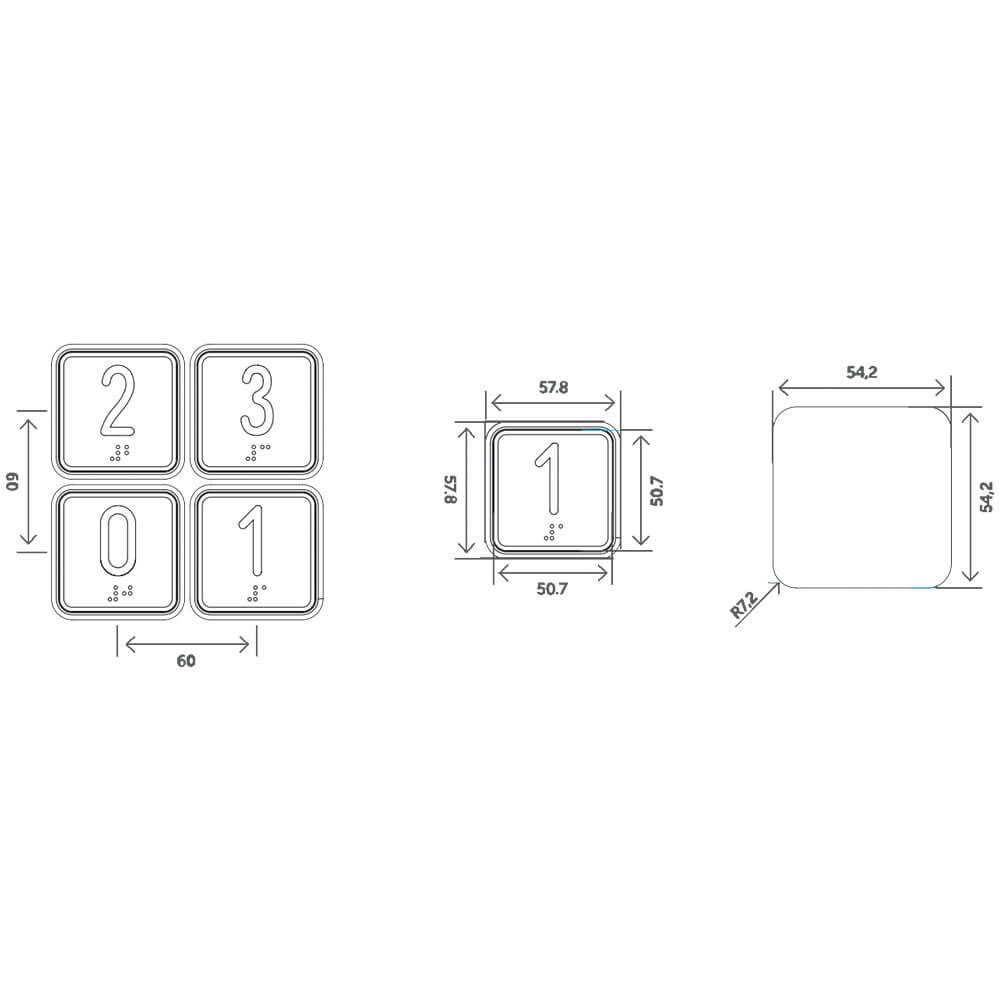

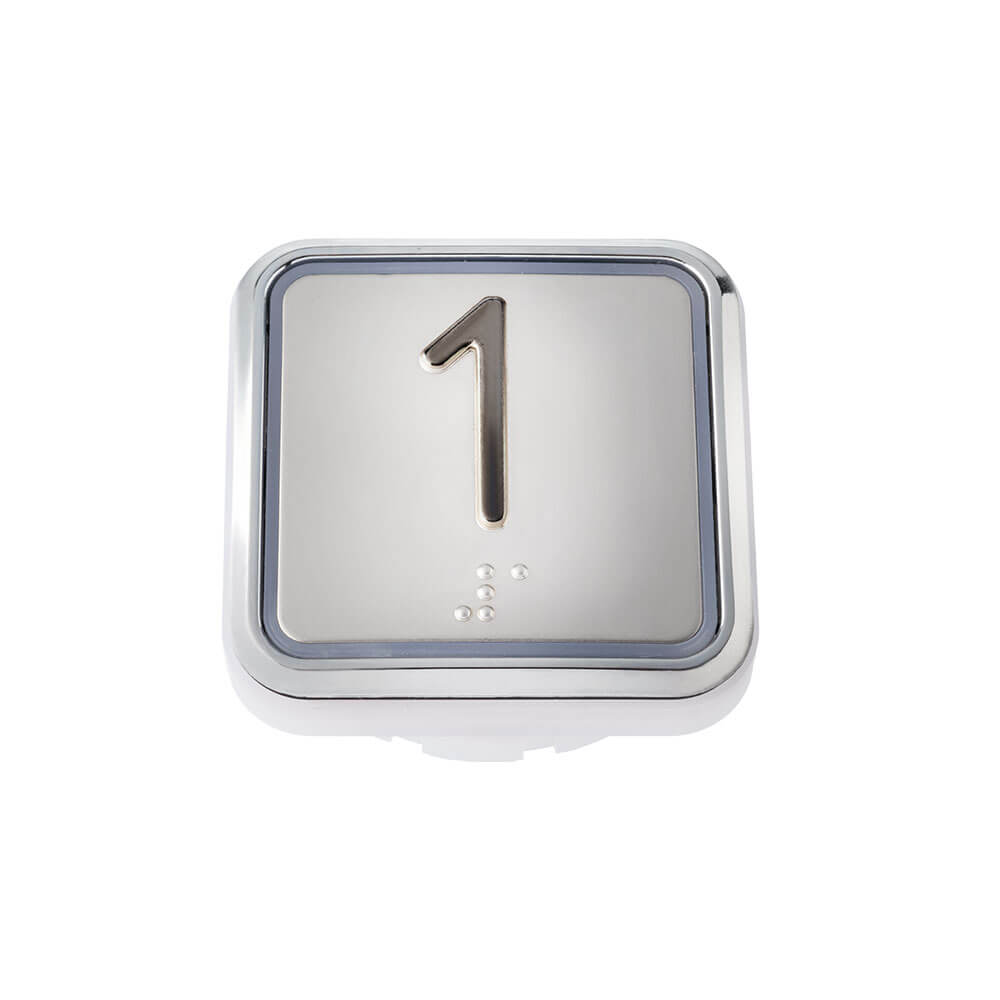

Squared push button with braille, 54×54
Complies with UNI EN 81-70
BRAILLE INCLUDED IN THE PUSH BUTTONS
Body: zamak push button (body and bezel united).
Rules: UNI EN 81-70 standards, CLASS 1.
Pressel: polycarbonate with stainless steel AISI 304 or gold/black pvd coated finishes; raised legend(s) and Braille.
Mounting: the button is put into the cutout (Ø 40,2 ) from the front and fixed by threaded ring.
Faceplate Thickness: 0,7 mm to 5 mm.
Contacts: 1 micro switch o 2 micro switches.
Wiring: PIN or pre-wired connectors (AMP, JST or MINISPOX).
Illumination: Led 12V o 24V DC 30mA.
Stroke: 1,2 mm.
Avg. life: 2.000.000 activations.
Degree of protection: IP54.
